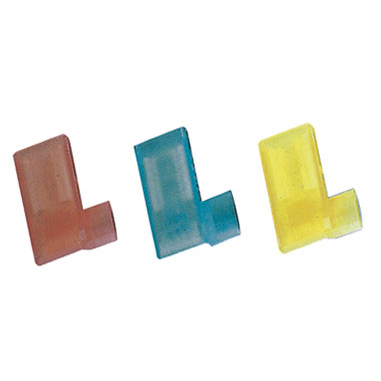

Flag female insulating joint (nylon)
View: 683
Product Details

Max current:22-18 A.W.G :10A   16-14 A.W.G :15A     12-10 A.W.G :24A
    Max stress: 105℃   600V   Material:Copper   Material of insulating bush:nylon   Thickness of Material:0.4mm

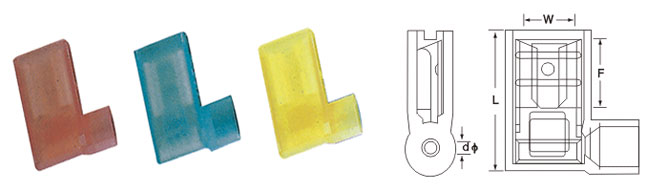

IE Spec Dimension(mm) Section of lead A.W.G
W F L dΦ
FLDNY 1.25 - 250 0.8 x 6.35 6.6 7.6 16.0 1.7 22 - 18 A.W.G   0.5 - 1.5 mm²
FLDNY 2 - 250 0.8 x 6.35 6.6 7.6 16.0 1.7 16 - 14 A.W.G   1.5 - 2.5 mm²
FLDNY 5.5 - 250 0.8 x 6.35 6.6 7.6 16.0 1.7 12 - 10 A.W.G   4 - 6 mm²
