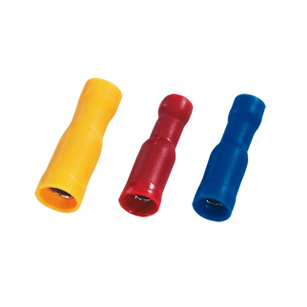

Bullet shaped male and female full-insulating joint (nylon)
View: 722
Product Details

Max current:22-16 A.W.G :19A   16-14 A.W.G :27A
Max stress: 105℃ 300V  Material:Copper   Material of insulating bush:Nylon

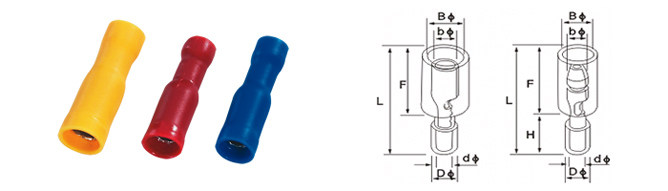

ITEMNO Dimension(mm) MAP Section
of Lead A.W.G mm²		 Color
BΦ bΦ DΦ dΦ L F H
FRFNY 1.25 - 156 6.9 3.9 3.2 1.8 26.0 15.0 11.0 1 22 - 16 A.W.G    0.5 - 1.5 mm² red
MPFNY 1.25 - 156 7.4 4.0 3.2 1.8 27.5 16.5 11.0 2 22 - 16 A.W.G    0.5 - 1.5 mm² red
FRFNY 2 - 156 6.9 3.9 3.9 2.4 26.0 15.5 11.0 1 16 - 14 A.W.G    1.5 - 2.5 mm² blue
MPFNY 2 - 156 7.4 4.0 3.9 2.4 27.5 16.5 11.0 2 16 - 14 A.W.G    1.5 - 2.5 mm² blue
