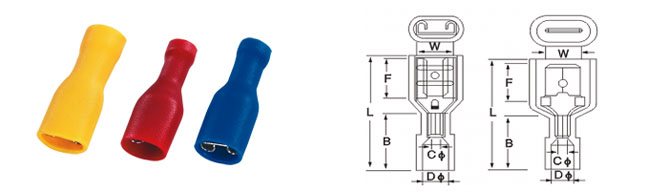

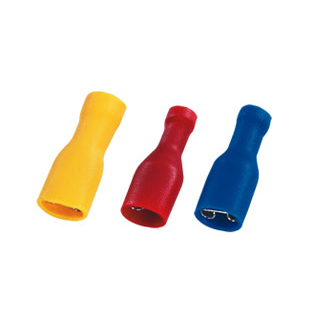

Male and female full-insulating joint (nylon)
View: 755
Product Details

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 )   Imax = 10A
ITEMNO Spec Thickness Dimension
B W L K dф Dф Color
mm mm mm mm mm mm mm mm
MDFNY 1.25～250 0.8×6.35 0.8 6.30 11.8 24.5 11.0 1.8 3.5 red

Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 )   Imax = 15A
ITEMNO Spec Thickness Dimension
B W L K dф Dф Color
mm mm mm mm mm mm mm mm
MDFNY 2～250 0.8×6.35 0.8 6.30 11.8 24.5 11.0 2.3 4.0 blue

Section of lead:4 - 6 mm² (USA Spec 12 - 10 )  Imax = 24A
ITEMNO Spec Thickness Dimension
B W

L

 H dф Dф Color
mm mm mm mm mm mm mm mm
MDFNY 5.5～250 0.8×6.35 0.8 6.30 11.8 24.5 11.0 3.5 5.0 yellow

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 )  Imax = 10A
ITEMNO Spec Thickness Dimension
B W L H dф Dф Color
mm mm mm mm mm mm mm mm
FDFNY 1.25-110(5) 0.5×2.8 0.3 3.8 5.8 19.0 10.0 1.8 3.5 red
FDFNY 1.25-110(8) 0.8×2.8 0.3 3.8 5.8 19.0
FDFNY 1.25-187(5) 0.5×4.75 0.35 5.6 7.4 19.5
FDFNY 1.25-187(8) 0.8×4.75 0.35 5.6 7.4 19.5
FDFNY 1.25-250 0.8×6.35 0.4 7.4 10.0 23.0

Section of lead:1.5 - 2.5 mm² (USA Spec  16 - 14 )  Imax = 15A
ITEMNO Spec Thickness Dimension
B W L H dф Dф Color
mm mm mm mm mm mm mm mm
FDFNY 2-111(5) 0.5×2.8 0.3 3.8 5.8 19.0 10.0 2.3 4.0 blue
FDFNY 2-111(8) 0.8×2.8 0.3 3.8 5.8 19.0
FDFNY 2-187(5) 0.5×4.75 0.35 5.6 7.4 19.5
FDFNY 2-187(8) 0.8×4.75 0.35 5.6 7.4 19.5
FDFNY 2-250 0.8×6.35 0.4 7.4 10.0 23.0

Section of lead::4 - 6 mm² (USA Spec  12 - 10 )  :Imax = 24A
ITEMNO Spec Thickness Dimension
B W L H dф Dф Color
mm mm mm mm mm mm mm mm
FDFNY 5-250 0.8×6.35 0.4 7.4 10.0 24.0 11.0 3.5 5.0 yellow
