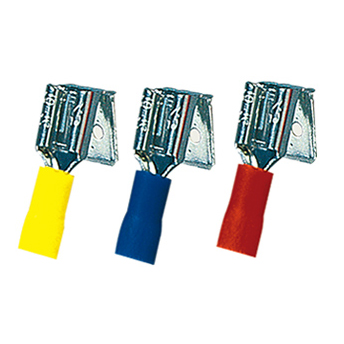

Shoulder shaped male and female pre-insulating joint
View: 524
Product Details

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 )  Imax = 10A

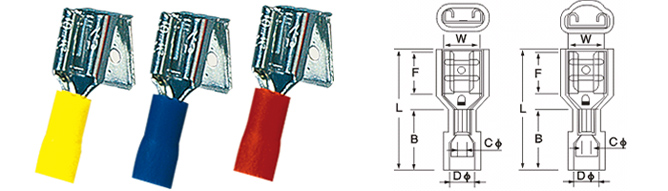

ITEMNO NEMATAB Dimension
t B B1 H DΦ dΦ L
mm mm mm mm mm mm mm
PBDD 1.25-250 0.8*6.35 7.4 6.3 10.0 3.8 1.7 21.5

Section of lead:1.5 - 2.5 mm² (USA Spec  12 - 10 )   Imax = 15A
ITEMNO NEMATAB Dimension
t B B1 H DΦ dΦ L
mm mm mm mm mm mm mm
PBDD 2-250 0.8*6.35 7.4 6.3 10.0 4.3 2.3 21.5

Section of lead:1.5 - 2.5 mm² (USA Spec  12 - 10 )   Imax = 15A
ITEMNO NEMATAB Dimension
t B B1 H DΦ dΦ L
mm mm mm mm mm mm mm
PBDD 2-250 0.8*6.35 7.4 14.0 5.7 3.4 2.3 25.0
