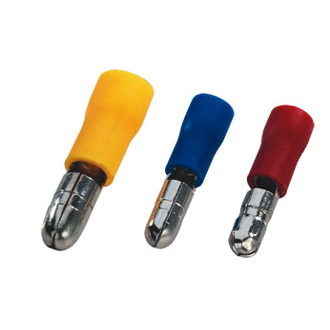

Bullet father pre-insulation joint
View: 557
Product Details

Section of lead:0.5 - 1.5 mm² (USA Spec 22 - 16 )  Imax = 10A   Material:Copper

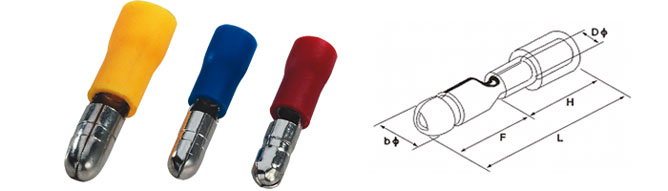

ITEMNO Thickness Dimension (mm) Color
bΦ F DΦ H L
MPD 1.25 - 156 0.4 4.0 11.0 1.7 10.0 21.0 red

Section of lead:1.5 - 2.5 mm² (USA Spec 16 - 14 )   Imax = 15A   Material:Copper
ITEMNO Thickness Dimension (mm) Color
bΦ F DΦ H L
MPD 2 - 156 0.4 4.0 11.0 2.3 10.0 21.0 blue
MPD 2 - 195 0.4 5.0 11.0 2.3 10.0 21.0

Section of lead:4 - 6 mm² (USA Spec 12 - 10 )   Imax = 24A  Material:Copper
ITEMNO Thickness Dimension (mm) Color
bΦ F DΦ H L
MPD 5.5 - 195 0.4 5.0 12.0 3.4 13.0 25.0 yellow
